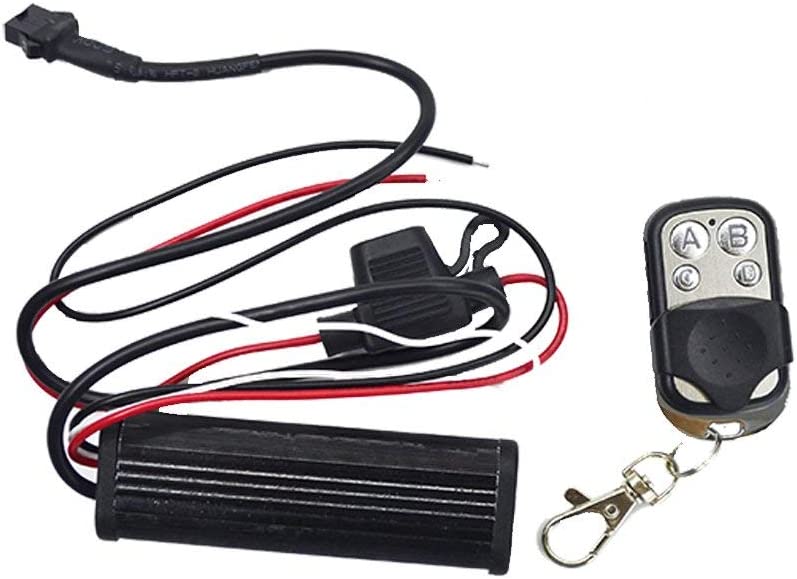

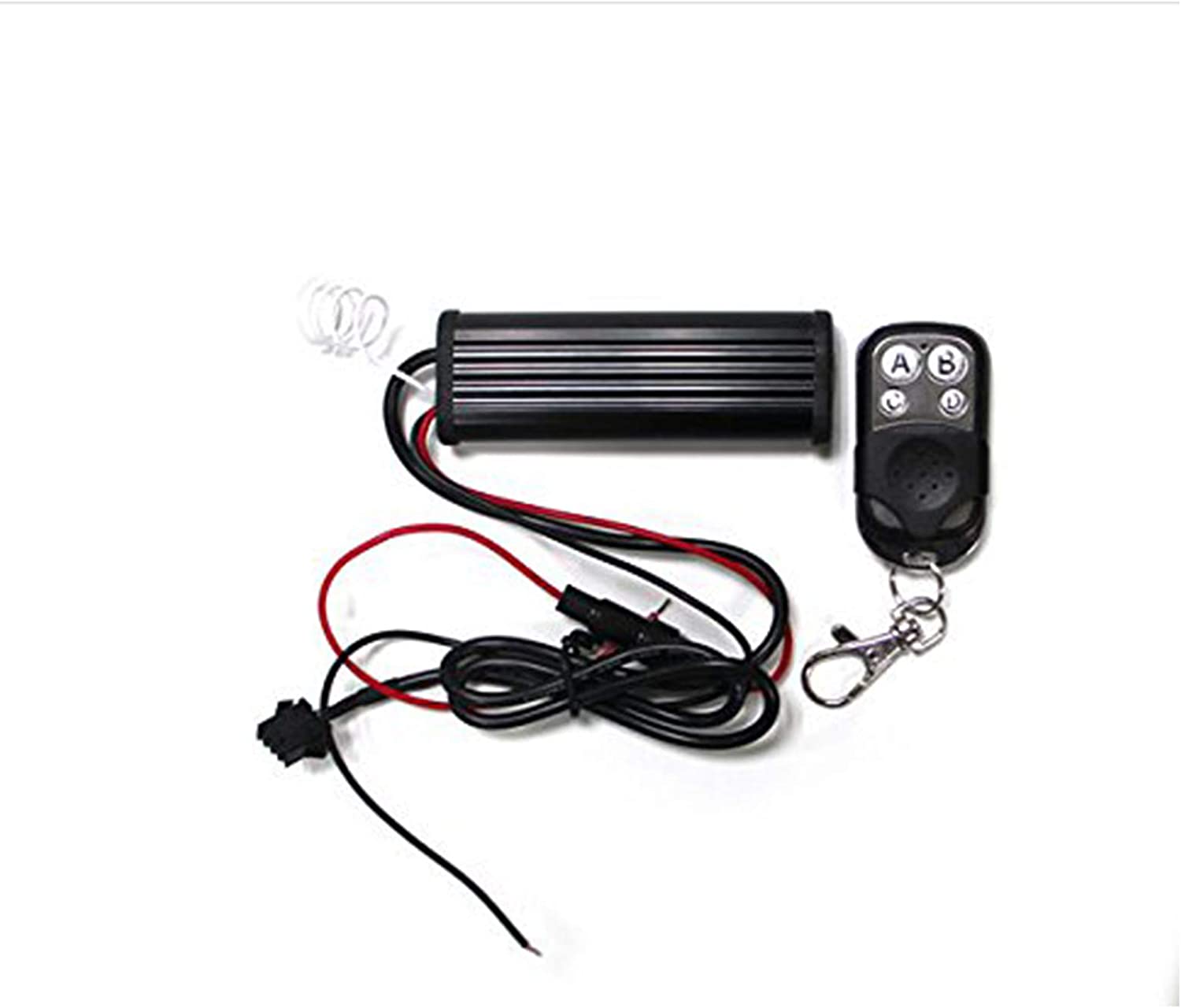

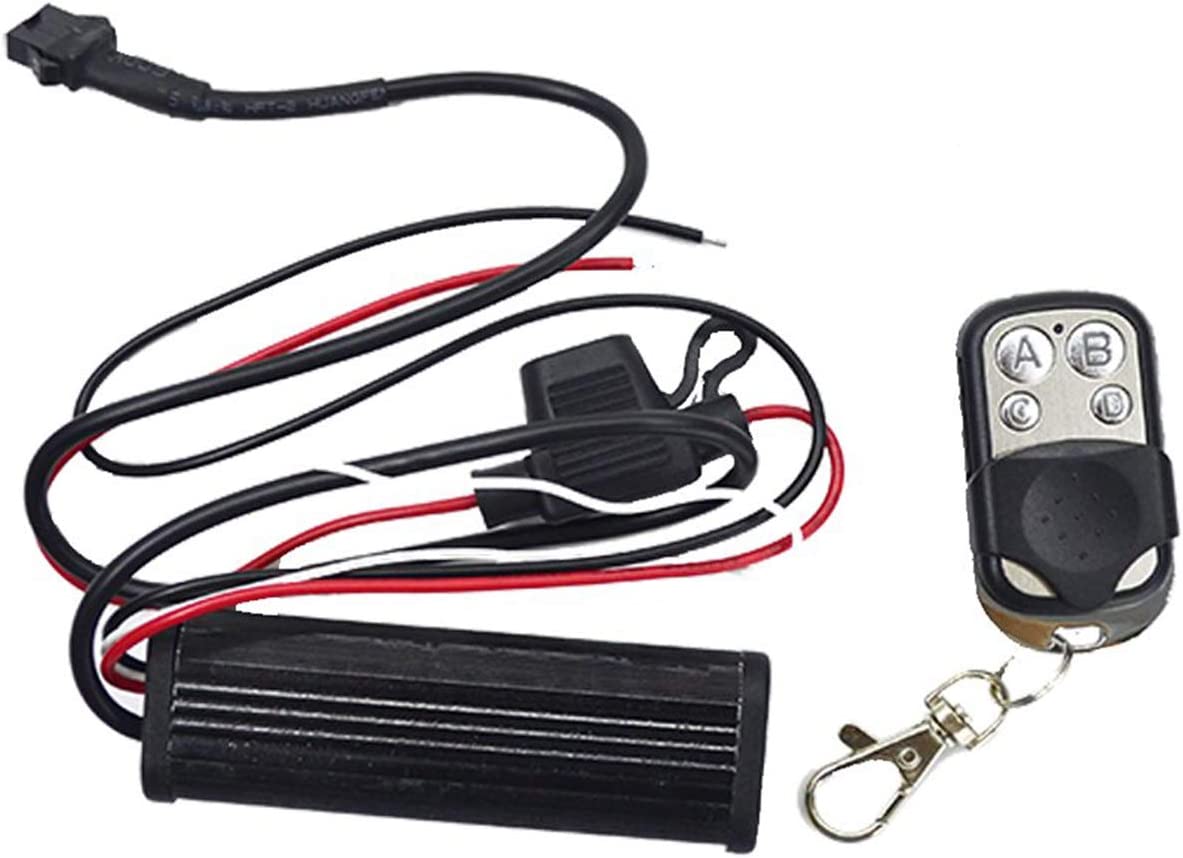

Octane Lighting RGB LED Multi-Color RF Controller and 4-Key Remote

This Remote Allows You To Have RGB Multi Color Led Lights Flash, Fade, Or Stay A Solid Color.

• Wireless Remote And Control Unit.
• Motorcycle Ambient Lighting
• On/Off
• Dim And Adjust Brightness By Remote
• Set To Flash Different Colors Or Slow Color Fade

Product NameпјљRGB LED RF remote controller with 4-key

RF remote controller is widely use for LED auto lamps and strips and can carry out quick color changing, gradual fade, strobe flash etc.

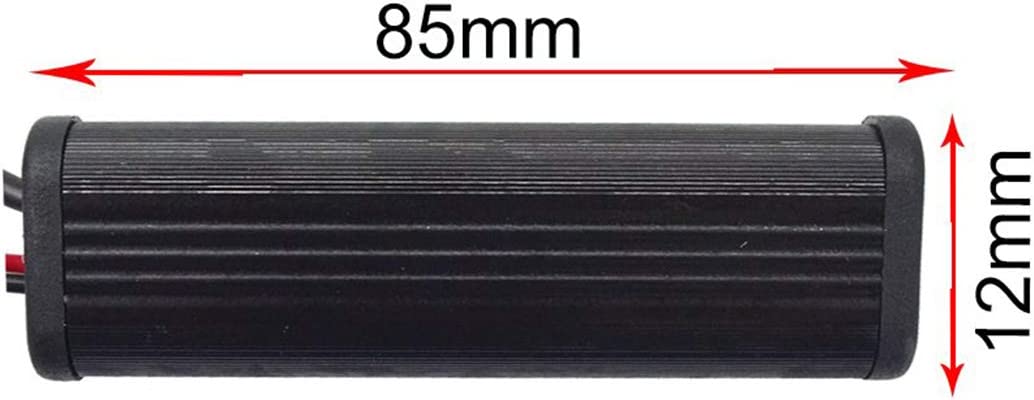

Body: Product size пјљ81X30X15mm CaseпјљAluminum alloyпјЊblack electronic plate Working Voltage : DC12V Output : 0-100W Remoteпјљ Product size пјљ56X30X14mm Case пјљ Stainless steel

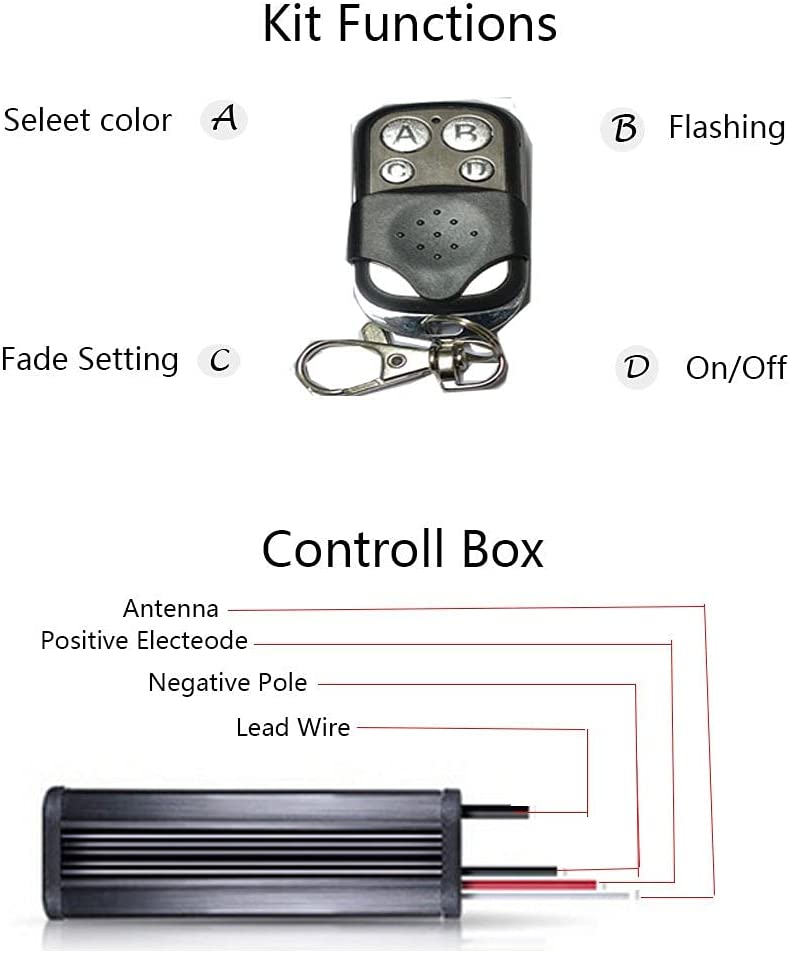

Key Functions :

A-key пјљhit A key 1-17 times: red, blue, pink, green, yellow, blackish green, orange, peach, aqua, warm white, weak yellow, tea, purple, sky blue, white. RGB jumping, RGB fading, repeat action. Keep pressing 5 second, there are 5 grade dimmer for current color except the jumping and fading pattern

B- key пјљHit B key, the current color become flashing from static; when you select jumping and fading pattern, Hold on B-key 5 second, jumping or fading will speed up.

C- key пјљHit C key, the current color become fading from static; when you select jumping and fading pattern, Hold on B-key 5 second, jumping or fading will speed down.

D- key пјљturn off all the loading, Hold on D key 5 second, the pattern recover back to the first pattern. Connectionпјљ Red wire пјљDC12V+ DC12V+ DC12V- Black wire пјљDC12- Antenna White : Loading+ Red wire пјљRed - Green wire: Green - Blue wire : Blue
